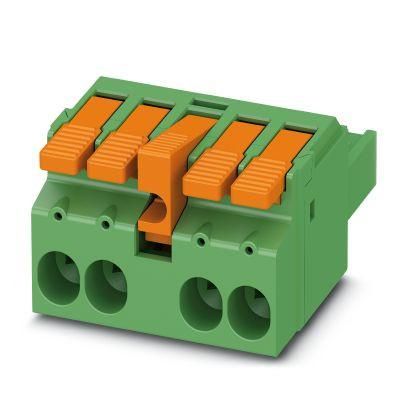

Phoenix Contact 1392886 LPC 6/ 4-STL3-7,62 BK PCB connector

Phoenix Contact 1392886 LPC 6/ 4-STL3-7,62 BK PCB connector

In stock

SKU: 929957

Price on request

€7.59

€0

Overview

Printed circuit board connector, nominal cross section: 6 mm², color: black, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: tin, contact type: socket (female), number of rows: 1, number of positions: 4, article family: LPC 6/..-STL3, pitch: 7.62 mm, connection type: lever push-in connection, connection direction conductor/PCB: 0 °, locking hook: - without locking hook, plug-in system: COMBICON PC 6, locking: locking lock, fastening type: locking flange, packaging type: packed in a box

Property	Value
Connectable cable type:	other
Connectable conductor cross section single-wire:	0.75 to 10 mm²
Connectable conductor cross-section, stranded with wire end ferrule:	0.75 to 6 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.75 to 6 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	1000 V
Rated impulse voltage:	8 kV
Rated current In:	41 A
Operating temperature:	-40 to 105 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	black
Contact design:	socket
With protective conductor:	no
Pitch of the connections:	7.62 mm
Contact pitch:	7.62 mm
Overvoltage category:	III
Pollution level:	2
Contact coating material:	Tin
Housing material:	Other
Insulating body material:	Other
Contact material:	Copper
Angle contact/conductor connection:	Other
Connection type:	other
Housing coating:	other
