Phoenix Contact 1402092 MBK 10 BU 0.5qmm-10qmm blue feed-through terminal

In stock

SKU: 566101

Price on request

€5.11

€0

Overview

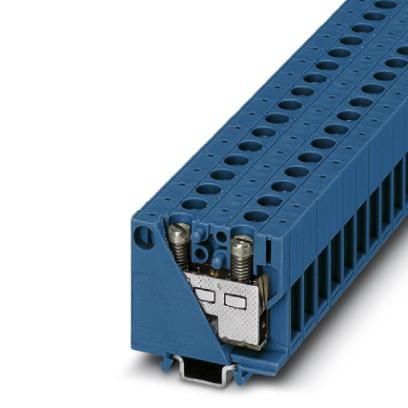

Mini feed-through terminal, nominal voltage: 500 V, nominal current: 61 A, connection type: screw connection, 1st level, cross-section: 0.5 mm² - 10 mm², mounting type: NS 15, colour: blue

Property	Value
Colour:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 6 mm²
Rated voltage:	500 V
Number of levels:	1
Number of terminal points per Floor:	2
Rated current In:	61 A
Operating temperature:	-60 to 105 °C
Connectable conductor cross-section, single-wire:	0.5 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 6 mm²
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	DIN rail TH15
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	other
