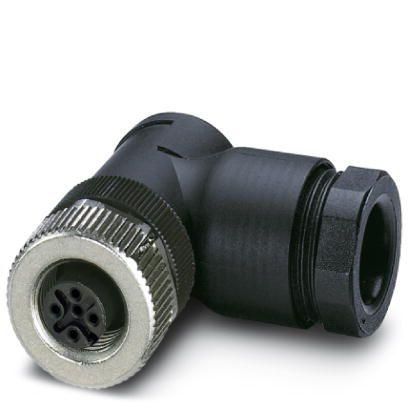

Phoenix Contact 1408993 SACC-M12FR-5CON-PG11-M PWR connector

In stock

SKU: 583472

Price on request

€20.79

€0

Overview

Safe use in the field thanks to high protection classes. Flexible: connectors for on-site assembly. Screw connection: proven connection technology for a large selection of different conductors.

Property	Value
Overvoltage category:	II
Connectable conductor cross-section, single-wire:	1.5 mm²
Rated current In:	8 A
Ambient temperature:	85 °C
Material of the housing:	other
With protective conductor:	no
Design of the electrical Connection:	Screw connection
Pollution level:	3
Locking type:	other
Rated voltage:	48 V
Flammability class of the insulating material according to UL 94:	V0
Material of the contact coating:	Nickel
Design of the housing:	angled
Contact design:	socket
Diameter of the connector:	20.2 mm
Number of control contacts:	5
For outer cable diameter:	8 to 10 mm
Housing coating:	other
Material of the threaded ring:	other
Min. Number of mating cycles:	100
Shielded:	no
With status display:	no
