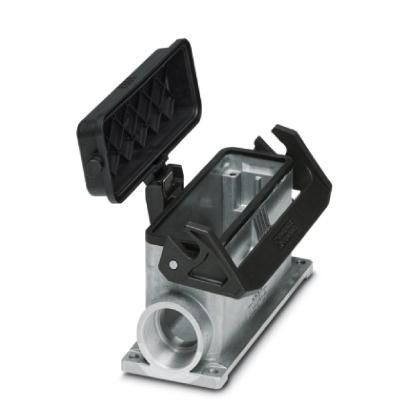

Phoenix Contact 1412883 HC-STA-B24-SLWSC-2SSP21-ELC-AL Housing

In stock
SKU: 574500
€31.60
Into a basketIn the basketGo

Overview

Base housing B24, with longitudinal bracket, material: die-cast aluminum, seawater resistant, protective cover material: PA, cable outlets: 2, side, height: 68 mm, cable gland: without, nozzle: yes, 2x Pg21, protective cover: yes, standard

Property Value
Width: 57 mm
Height: 68 mm
Housing design: Base housing
Protection class (IP), mounted: IP66
Operating temperature: -40 up to 125 °C
Cable feed arrangement: side
Locking type: Longitudinal bracket
With hinged lid: yes
EMC version: yes
With cable gland: no
UV-resistant: no
Material of the housing: Aluminium
Flammability class of the Insulating material according to UL 94: other
Housing coating: uncoated
Bracket position: upper part
Depth: 144 mm
Housing colour: other
Cable gland fastening type: PG
With nozzle: yes
With seal: yes
Number of cable entries: 2
Impact resistance: IK08

Characteristics

HABHC-STA-B24-SLWSC-2SSP21-ELC-AL
ManufacturerPhoenix Contact
HAN1412883
GTIN4055626061320
Number of cable entries2
Housing coatingUncoated
Operating temperatur-40 to 125 °C
Width57 mm
Flammability class of the insulating material according to UL 94Other
EMC versionYes
Housing colorOther
Height68 mm
With hinged lidYes
Impact resistanceIK08
Depth144 mm
UV-resistantNo
Housing materialAluminum
