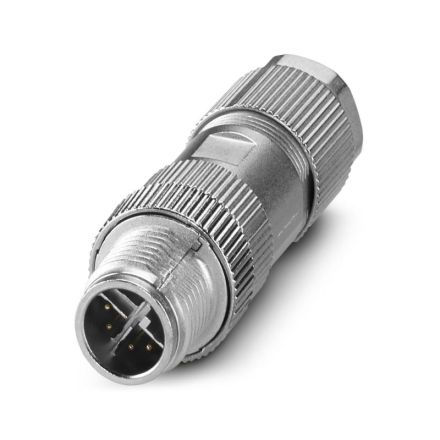

Phoenix Contact 1417430 VS-08-M12MS-10G-P SCO bus system connector

In stock
SKU: 580799
€31.60
Into a basketIn the basketGo

Overview

Bus system connector, Ethernet CAT6A (10 GBit/s), 8-pin, shielded, plug straight M12 SPEEDCON, X-coded, Piercecon®, knurling material: zinc die-cast, nickel-plated, cable outer diameter 4 mm ... 8 mm

Property Value
Overvoltage category: II
Connectable conductor cross-section, single-wire: 0.14 mm²
Rated current In: 0.5 A
Ambient temperature: 85 °C
Material of the housing: Zinc
With protective conductor: no
Degree of pollution: 3
Type of locking: other
Rated voltage: 48 V
Flammability class of the insulating material according to UL 94: V0
Material of the contact coating: Nickel
Design of the housing: straight
Contact design: Pin
Number of control contacts: 8
For outer cable diameter: 4 to 8 mm
Housing coating: other
Material of the threaded ring: other
Min. Number of mating cycles: 100
Shielded: yes
With status display: no

Characteristics

ShieldedYes
HABVS-08-M12MS-10G-P SCO
ManufacturerPhoenix Contact
HAN1417430
GTIN4046356530699
Connectable conductor cross-section solid0.14 mm²
Rated voltage48V
Rated current In0.5A
Housing coatingOther
Flammability class of the insulating material according to UL 94V0
With status displayNo
Ambient temperature85°C
Degree of contamination3
Housing materialZinc
Overvoltage categoryII
