Phoenix Contact 1419235 HC-STA-D07-HHFS-1STM20-EL-AL Housing

In stock

SKU: 596652

Price on request

€5.11

€0

Overview

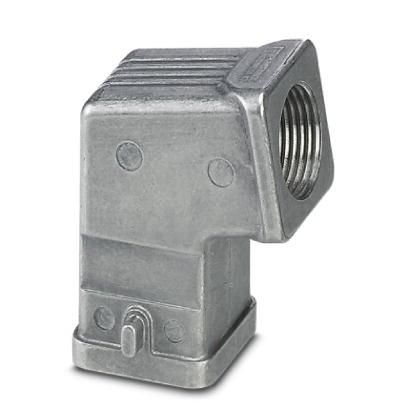

Grommet housing D7, for single lever, material: die-cast aluminum, seawater resistant, cable outlets: 1, side, height: 52.8 mm, cable gland: without, nozzle: yes, 1x M20, standard

Property	Value
Width:	40.7 mm
Height:	52.8 mm
Housing design:	other
Protection class (IP), mounted:	IP66
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	yes
With cable gland:	no
UV-resistant:	no
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	uncoated
Bracket position:	without
Depth:	26.9 mm
Housing colour:	other
Cable gland fastening type:	metric
With nozzle:	yes
With seal:	no
Number of Cable entries:	1
Impact resistance:	IK06
