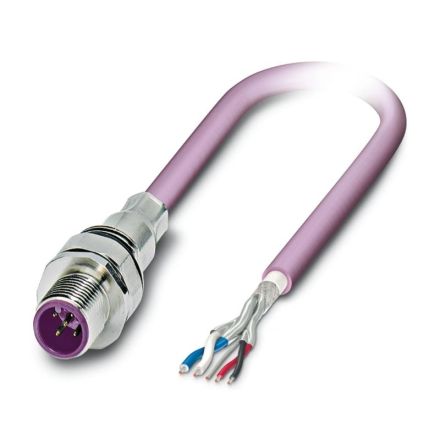

Phoenix Contact 1525636 SACCEC-M12MS-5CON-M16/ 1,0-920 Bus system flush-mounted connector

In stock
SKU: 580453
€31.60
Into a basketIn the basketGo

Overview

Pre-assembled with cables in various standard lengths for immediate use. Customer-specific assemblies and cable lengths available. Potted on the cable side for optimal tightness. Cable versions for all common networks and field buses. For high transmission reliability: shield connection to the housing with optional EMC nut.

Property Value
Overvoltage category: II
Rated current In: 4 A
Ambient temperature: 85 °C
Housing material: other
With protective conductor: no
Degree of pollution: 3
Type of locking: other
Rated voltage: 48 V
Flammability class of the insulating material according to UL 94: V0
Material of the contact coating: Nickel
Housing design: straight
Protection class (IP), mounted: IP65/IP67
Contact design: Pin
Number of control contacts: 5
Material of the threaded ring: other
Min. number of mating cycles: 100
Shielded: yes
With status display: no

Characteristics

ShieldedYes
HABSACCEC-M12MS-5CON-M16/ 1,0-920
ManufacturerPhoenix Contact
HAN1525636
GTIN4046356022378
Rated voltage48V
Rated current In4 A
Flammability class of the insulating material according to UL 94V0
With status displayNo
Ambient temperature85°C
Degree of contamination3
Housing materialOther
Overvoltage categoryII
Phoenix Contact 1525636 SACCEC-M12MS-5CON-M16/ 1,0-920 Bus system flush-mounted connector
Phoenix Contact 1525636 SACCEC-M12MS-5CON-M16/ 1,0-920 Bus system flush-mounted connector
€31.60
Into a basketIn the basketGo
