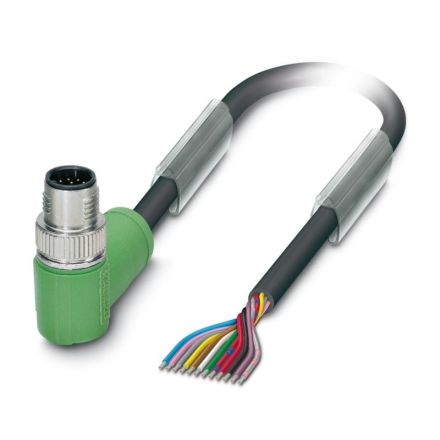

Phoenix Contact 1554830 SAC-12P-MR/ 5.0-PVC SCO sensor/actuator cable

In stock

SKU: 592337

Price on request

€34.91

€0

Overview

Sensor/actuator cable, 12-pin, PVC, black RAL 9005, angled plug M12 SPEEDCON, coding: A, on free cable end, cable length: 5 m

Property	Value
Rated current In:	1.5 A
Color of cable sheath:	other
With LED display:	no
Material of cable sheath:	Polyvinyl chloride (PVC)
Number of poles:	12
Design of electrical connection, field side:	M12
Type of plug contact, field side:	Male (plug)
Arrangement of cable feed, field side:	other
Design of electrical connection, housing side:	M12
Type of plug contact, housing side:	Male (plug)
Arrangement of cable feed, housing side:	angled
Cable length:	5 m
Halogen-free:	no
Shielded:	no
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-25 to 80 °C
Permissible Cable external temperature during assembly/handling:	-5 to 80 °C
Rated voltage:	30 V
Protection class (IP):	IP65
