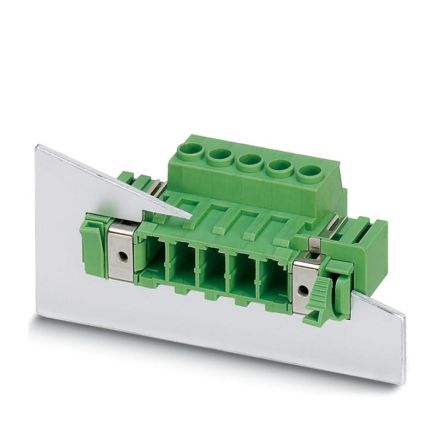

Phoenix Contact 1716713 DFK-PC 5/12-STF-7,62 PCB connector

In stock
SKU: 589128
€31.65
Into a basketIn the basketGo

Overview

Feed-through plug, nominal cross section: 6 mm², color: green, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: tin, contact type: pin (male), number of potentials: 12, number of rows: 1, number of poles: 12, number of connections: 12, article family: DFK-PC 5/..-STF, pitch: 7.62 mm, connection type: screw connection with tension sleeve, connection direction conductor/board: 0 °, plug system: COMBICON PC 5, alignment of plug face: standard, locking: screw locking, fastening type: screw flange, packaging type: packed in a box

Property Value
Connectable cable type: other
Connectable conductor cross-section, single-wire: 0.2 to 10 mm²
Connectable conductor cross-section, stranded with wire end ferrule: 0.25 to 4 mm²
Connectable conductor cross-section, stranded without wire end ferrule: 0.2 to 6 mm²
Number of plug contact rows: 1
Design of the electrical connection: Screw connection
Rated voltage: 1000 V
Rated impulse voltage: 8 kV
Rated current In: 41 A
Operating temperature: -40 to 100 °C
Flammability class of the insulating material according to UL 94: V0
Housing color: green
Contact design: other
With protective conductor: no
Pitch of the connections: 7.62 mm
Pitch of contacts: 7.62 mm
Overvoltage category: III
Pollution level: 2
Material of contact coating: Tin
Material of housing: other
Material of insulating body: other
Material of contact: Copper
Angle Contact/conductor connection: other
Connection type: other
Number of poles: 12
Housing coating: other

Characteristics

Rated surge voltage8 kV
HABDFK-PC 5/12-STF-7,62
Minimal order10 pcs
ManufacturerPhoenix Contact
HAN1716713
GTIN4046356137331
Connectable conductor cross-section solid0.2 to 10 mm²
Design of the electrical connectionScrew connection
Rated voltage1000V
Rated current In41 A
Housing coatingOther
Operating temperatur-40 to 100 °C
Flammability class of the insulating material according to UL 94V0
Housing colorGreen
Number of poles12
Connection typeOther
Degree of contamination2
Housing materialOther
Overvoltage categoryIII
