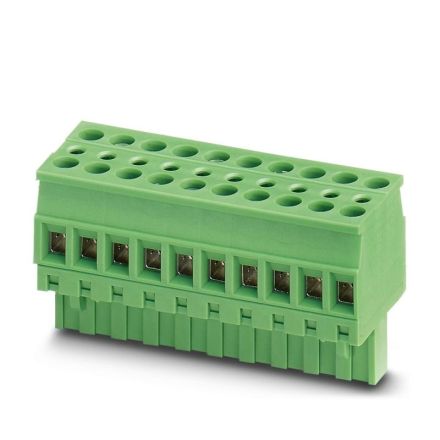

Phoenix Contact 1719082 TVMSTB 2,5/10-ST-5,08 PCB connector

In stock
SKU: 591118
€13.13
Into a basketIn the basketGo

Overview

PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 400 V, contact surface: tin, contact type: socket (female), number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 20, article family: TVMSTB 2.5/..-ST, pitch: 5.08 mm, connection type: screw connection with tension sleeve, screw attack form: L longitudinal slot, connection direction conductor/PCB: 90 °, locking hook: - locking hook, plug-in system: COMBICON MSTB 2.5, locking: without, fastening type: without, packaging type: packed in a box

Property Value
Connectable cable type: other
Connectable conductor cross-section, single-wire: 0.2 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 0.2 to 2.5 mm²
Number of plug contact rows: 1
Design of the electrical connection: Screw connection
Rated voltage: 400 V
Rated impulse voltage: 4 kV
Rated current In: 12 A
Operating temperature: -40 to 100 °C
Flammability class of the insulating material according to UL 94: V0
Housing color: green
Contact design: Socket
With protective conductor: no
Pitch of the Connections: 5.08 mm
Contact pitch: 5.08 mm
Overvoltage category: III
Pollution level: 2
Contact coating material: Tin
Housing material: Other
Insulating body material: Other
Contact material: Copper
Angle contact/conductor connection: other
Connection type: other
Number of poles: 20
Housing coating: other

Characteristics

Rated surge voltage4 kV
HABTVMSTB 2.5/10-ST-5.08
Minimal order50 pcs
ManufacturerPhoenix Contact
HAN1719082
GTIN4046356156479
Connectable conductor cross-section solid0.2 to 2.5 mm²
Design of the electrical connectionScrew connection
Rated voltage400V
Rated current In12A
Housing coatingOther
Operating temperatur-40 to 100 °C
Flammability class of the insulating material according to UL 94V0
Housing colorGreen
Number of poles20
Connection typeOther
Degree of contamination2
Housing materialOther
Overvoltage categoryIII
