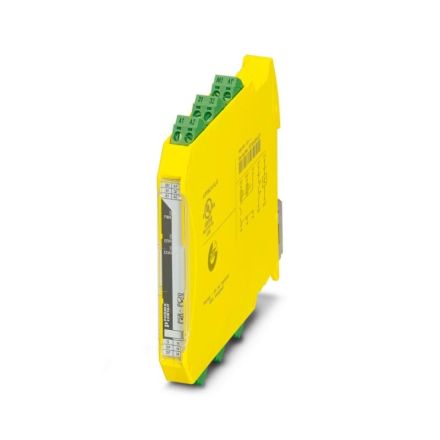

Phoenix Contact 2700578 PSR-PC20-1NO-1NC-24DC-SP coupling relay

In stock

SKU: 591564

Price on request

€125.22

€0

Overview

Coupling relay for SIL 3 high and low demand applications, couples digital output signals to the periphery, 1 enable current path, 1 feedback current path, 1 digital signal output, safe state off applications, test pulse filter, TBUS connection, pluggable push-in terminal

Property	Value
Suitable for monitoring proximity switches:	no
Evaluation of the inputs:	other
Suitable for monitoring magnetic switches:	no
With UL approval:	yes
With muting function:	no
Mounting rail mounting possible:	yes
Design:	Basic device
Design of the electrical connection:	Spring-loaded connection
Suitable for monitoring optoelectronic protective devices:	no
Stop category according to IEC 60204:	other
Suitable for monitoring EMERGENCY STOP circuits:	no
Rated control supply voltage Us at DC:	24 V
Suitable for monitoring valves:	no
Suitable for monitoring tactile sensors:	no
With approval for BG BIA:	no
Width:	12.5 mm
Height:	116.6 mm
Depth:	114.5 mm
With removable Terminals:	yes
With start input:	no
With feedback loop:	no
Release delay:	0.1 s
