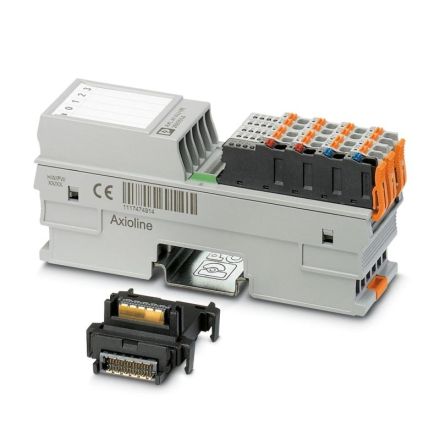

Phoenix Contact 2702008 AXL F AI4 U XC 1H I/O module

Phoenix Contact 2702008 AXL F AI4 U XC 1H I/O module

In stock

SKU: 591732

Price on request

€418.20

€0

Overview

4 analog, bipolar input channels for connecting voltage signals. Sensors connected using 2-, 3- and 4-wire technology. Voltage ranges: 0V ... 10V, 10V, 0V ... 5V, 5V. Simultaneous sampling of all channels. High crosstalk attenuation between the channels due to separate signal paths. Particularly robust against electromagnetic interference. Stored device nameplate. Diagnostic and status displays. Can be used under extreme environmental conditions. Extended temperature range -40°C...+70°C (see chapter 'Successfully tested: Use under extreme environmental conditions' in the data sheet). Partially painted circuit boards.

Property	Value
Protection class (IP):	IP20
Type of supply voltage:	DC
Height:	126.54 mm
Width:	35 mm
Depth:	52.8 mm
Input, current:	no
Input, voltage:	yes
Output, current:	no
Output, voltage:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for DeviceNet:	no
Supports protocol for KNX:	no
Supply voltage for DC:	19.2 to 30 V
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Front mounting possible:	no
Supports protocol for TCP/IP:	no
Design of the electrical connection:	other
Rack mounting possible:	no
Supports protocol for SUCONET:	no
Resolution of the analog inputs:	16 bit
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for PROFIBUS:	no
Suitable for safety functions:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for other bus systems:	yes
Input, resistance:	no
Input, resistance thermometer:	no
Input, thermocouple:	no
Input signal configurable:	yes
Output signal configurable:	no
Mounting rail possible:	yes
Fieldbus connection possible via separate bus coupler:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Analog inputs configurable:	yes
Number of analog inputs:	4
SIL according to IEC 61508:	without
Analog outputs configurable:	no
