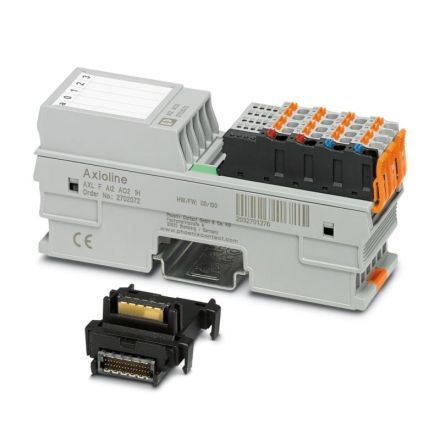

Phoenix Contact 2702072 AXL F AI2 AO2 1H I/O module

Phoenix Contact 2702072 AXL F AI2 AO2 1H I/O module

In stock

SKU: 591774

Price on request

€419

€0

Overview

Axioline F, analog input/output module, analog inputs: 2.0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-wire, analog outputs: 2.0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-wire, transmission speed in the local bus: 100 MBit/s, protection class: IP20, including bus base module and Axioline F connectors

Features	Value
Protection class (IP):	IP20
Type of supply voltage:	DC
Height:	126.54 mm
Width:	35 mm
Depth:	52.8 mm
Input, current:	yes
Input, voltage:	yes
Output, current:	yes
Output, voltage:	yes
Supports protocol for SafetyBUS p:	no
Supports protocol for DeviceNet:	no
Supports protocol for KNX:	no
Supply voltage for DC:	19.2 to 30 V
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Front mounting possible:	no
Supports protocol for TCP/IP:	no
Design of the electrical connection:	other
Rack mounting possible:	no
Supports protocol for SUCONET:	no
Resolution of the analog inputs:	16 bit
Resolution of the analog outputs:	16 bit
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for PROFIBUS:	no
Suitable for safety functions:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for other bus systems:	yes
Input, resistance:	no
Input, resistance thermometer:	no
Input, thermocouple:	no
Input signal configurable:	yes
Output signal configurable:	yes
Mounting rail mounting possible:	yes
Field bus connection via separate bus coupler possible:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
Number of other HW interfaces:	2
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Analog inputs configurable:	yes
Number of analog outputs:	2
Number of analog inputs:	2
SIL according to IEC 61508:	without
Analog outputs configurable:	yes

Characteristics

Type of voltage of the supply voltageDC

Supports protocol for KNXNo

HABAXL F AI2 AO2 1H

Manufacturer

HAN2702072

GTIN4046356933124

Design of the electrical connectionOther

Width35 mm

Suitable for security functionsNo

Height126.54 mm

SIL according to IEC 61508Without

IP protection)IP20

Depth52.8 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsYes
