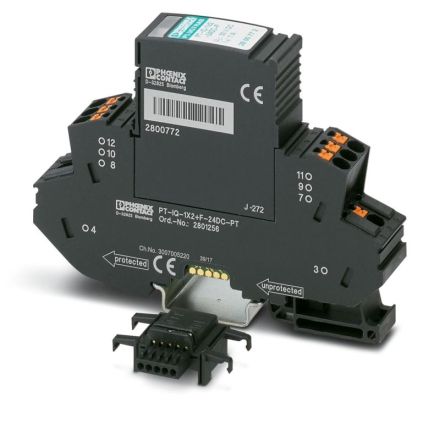

Phoenix Contact 2801256 PT-IQ-1X2+F-24DC-PT surge protection device

In stock
SKU: 594541
€125.89
Into a basketIn the basketGo

Overview

Surge protection, consisting of protective plug and base element, with integrated multi-stage status display on the module for a 2-wire earth-potential-free signal circuit. Indirect earthing via gas discharge tube.

Property Value
Signaling on the device: optical
Mounting type: other
Nominal discharge current (8/20): 10 kA
Nominal load current: 1 A
Connection 1: Terminal
Maximum continuous voltage DC: 30 V
Maximum continuous voltage AC: 21 V
Protection level wire/wire: 55 V
Protection level wire/earth: 1000 V
Protection level wire/signal ground: 600 V
With remote signaling contact: no
Explosion-tested version: no
Nominal voltage DC: 24 V

Characteristics

Explosion-tested versionNo
With remote signaling contactNo
Connection 1Clamp
Highest continuous voltage DC30 V
Nominal load current1 A
Nominal voltage DC24 V
Protection level wire/wire55 V
Protection level wire/earth1000 V
HABPT-IQ-1X2+F-24DC-PT
ManufacturerPhoenix Contact
HAN2801256
GTIN4046356766395
Highest continuous voltage AC21V
Mounting typeOther
Nominal discharge current (8/20)10kA
Signaling on the deviceOptical
