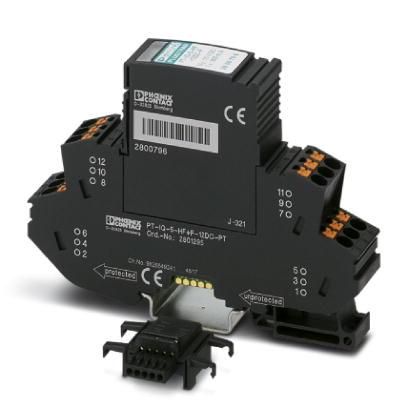

Phoenix Contact 2801295 PT-IQ-5-HF+F-12DC-PT surge protection

In stock
SKU: 566980
€204.03
Into a basketIn the basketGo

Overview

Surge protection, consisting of protective plug and base element, with integrated multi-stage status display on the module for five signal wires. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbit/s).

Property Value
Signaling on the device: optical
Mounting type: other
Nominal discharge current (8/20): 10 kA
Nominal load current: 0.6 A
Connection 1: Terminal
Maximum continuous voltage DC: 15 V
Highest continuous voltage AC: 10 V
Protection level wire/wire: 40 V
Protection level wire/earth: 900 V
Protection level wire/signal ground: 90 V
With remote signaling contact: no
Explosion-tested version: no
Nominal voltage DC: 12 V

Characteristics

Explosion-tested versionNo
With remote signaling contactNo
Connection 1Clamp
Highest continuous voltage DC15 V
Nominal load current0.6 A
Nominal voltage DC12 V
Protection level wire/wire40 V
Protection level wire/earth900 V
HABPT-IQ-5-HF+F-12DC-PT
ManufacturerPhoenix Contact
HAN2801295
GTIN4046356766753
Highest continuous voltage AC10V
Mounting typeOther
Nominal discharge current (8/20)10kA
Signaling on the deviceOptical
