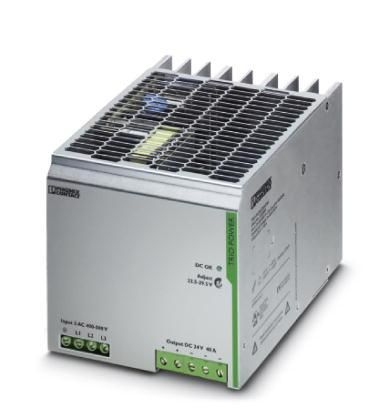

Phoenix Contact 2866404 TRIO-PS/3AC/24DC/40 TRIO POWER power supply

In stock
SKU: 559914
€419.96
Into a basketIn the basketGo

Overview

Robust design with metal housing and wide temperature range from -25 to +70 °C. Maximum operational reliability thanks to the high MTBF (Mean Time Between Failure) of more than 500,000 hours and high dielectric strength up to 300 V AC.

Property Value
Installation height: 130 mm
1. Output voltage: 24 to 29.5 V
Type of supply voltage: AC
Max. Output current 1: 40 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 320 to 500 V
Rated supply voltage at AC 60 Hz: 400 to 575 V
Short-circuit proof: yes
Stabilized: yes
Suitable for safety functions: yes
Direct mounting possible: no
Design of the electrical connection: screw connection
Output voltage regulated: yes
Power consumption: 1387 VA
Power output: 960 W
Suitable for series installation: no
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 139 mm
Height: 130 mm
Depth: 197 mm
Nominal output voltage 1: 24 V
Nominal output current 1: 40 A
SIL according to IEC 61508: without

Characteristics

Type of voltage of the supply voltageAC
Short circuit proofYes
Power consumption1387 VA
HABTRIO-PS/3AC/24DC/40
ManufacturerPhoenix Contact
HAN2866404
GTIN4046356046688
Design of the electrical connectionScrew connection
Width139 mm
Installation height130 mm
Suitable for series installationNo
Suitable for security functionsYes
Height130 mm
SIL according to IEC 61508Without
IP protection)IP20
Depth197 mm
Mounting rail possibleYes
