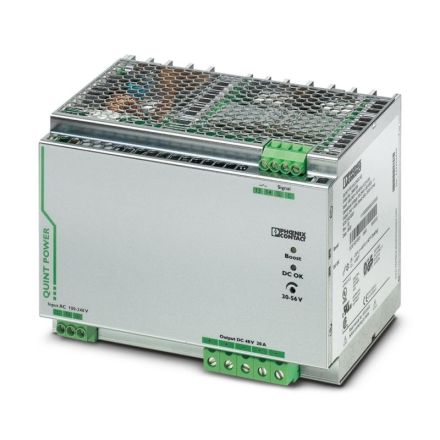

Phoenix Contact 2866695 QUINT-PS/ 1AC/48DC/20 power supply

In stock
SKU: 594434
€644.55
Into a basketIn the basketGo

Overview

Primary switch-mode power supply QUINT POWER for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 48 V DC / 20 A

Property Value
Installation height: 130 mm
1. Output voltage: 48 to 56 V
Type of supply voltage: AC/DC
Max. Output current 1: 22.5 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 85 to 240 V
Rated supply voltage at DC: 90 to 300 V
Rated supply voltage at AC 60 Hz: 100 to 264 V
Short-circuit proof: yes
Stabilized: yes
Suitable for safety functions: yes
Direct mounting possible: no
Design of the electrical connection: screw connection
Output voltage regulated: yes
Power consumption: 1046 VA
Power output: 960 W
Suitable for series installation: no
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 180 mm
Height: 130 mm
Depth: 125 mm
Nominal value of output voltage 1: 48 V
Nominal value of output current 1: 20 A
SIL according to IEC 61508: without

Characteristics

Type of voltage of the supply voltageAC/DC
Rated supply voltage for DC90 to 300 V
Short circuit proofYes
Power consumption1046 VA
HABQUINT-PS/ 1AC/48DC/20
ManufacturerPhoenix Contact
HAN2866695
GTIN4046356547727
Design of the electrical connectionScrew connection
Width180 mm
Installation height130 mm
Suitable for series installationNo
Suitable for security functionsYes
Height130 mm
SIL according to IEC 61508Without
IP protection)IP20
Depth125 mm
Mounting rail possibleYes
Phoenix Contact 2866695 QUINT-PS/ 1AC/48DC/20 power supply
Phoenix Contact 2866695 QUINT-PS/ 1AC/48DC/20 power supply
€644.55
Into a basketIn the basketGo
