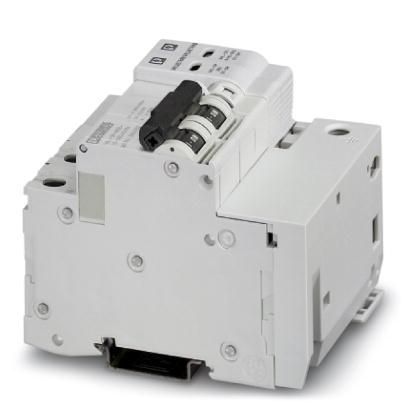

Phoenix Contact 2882763 VAL-CP-MCB-1S-350/40/FM surge protection combination

In stock

SKU: 563188

Price on request

€154.91

€0

Overview

Signaling to monitoring systems in the event of a fault via remote signaling contact. Combinations of type 2 arresters with integrated arrester backup fuse. If the surge protection is overloaded, all poles are disconnected from the network. Surge current-proof arrester backup fuse.

Property	Value
Protection level:	1.7 kV
Nominal discharge current (8/20):	15 kA
Maximum continuous voltage AC:	350 V
Protection level LN:	2.5 kV
Mounting type:	other
Size:	4 TE
Signaling on Device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section rigid (single/multi-wire):	35 mm²
Protection level N-PE:	1.7 kV
Protection class (IP):	other
