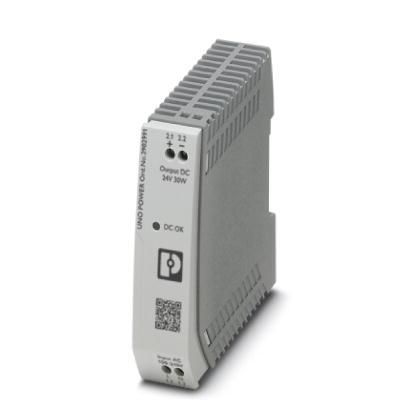

Phoenix Contact 2902991 UNO-PS/1AC/24DC/30W UNO POWER power supply

In stock

SKU: 560343

Price on request

€34.90

€0

Overview

Flexible installation by simply snapping onto the mounting rail. More space in the control cabinet with up to 20% higher power density. Maximum energy efficiency thanks to efficiencies over 90% and extremely low no-load losses of less than 0.3 W. Outdoor installation thanks to wide temperature range from -25 °C to +70 °C.

Property	Value
Installation height:	90 mm
1. Output voltage:	24 V
Type of supply voltage:	AC
Max. Output current 1:	1.25 A
Output voltage adjustable:	no
Rated supply voltage at AC 50 Hz:	85 to 240 V
Rated supply voltage at AC 60 Hz:	100 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	yes
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	yes
Power consumption:	72.1 VA
Power output:	30 W
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	22.5 mm
Height:	90 mm
Depth:	84 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	1.25 A
SIL according to IEC 61508:	without
