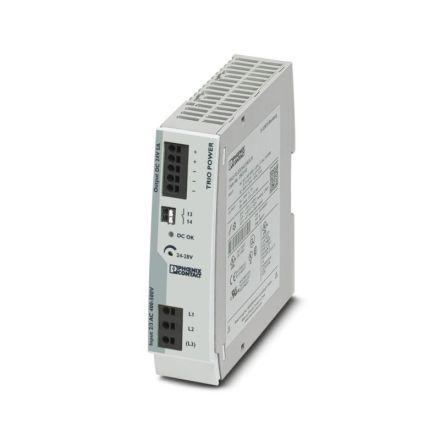

Phoenix Contact 2903153 TRIO-PS-2G/3AC/24DC/5 primary switched mode power supply

In stock

SKU: 594690

Price on request

€126.03

€0

Overview

Save time and money with push-in connection and slim design. Increase system availability with a dynamic boost of 150% of the rated current for five seconds. Maximum flexibility due to the wide temperature range from -25 °C to +70 °C and device start-up at -40 °C. Robust design.

Feature	Value
Installation height:	130 mm
1. Output voltage:	24 to 28 V
Type of supply voltage:	AC
Max. Output current 1:	7.5 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	320 to 575 V
Rated supply voltage at AC 60 Hz:	320 to 500 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	yes
Direct mounting possible:	no
Design of the electrical connection:	other
Output voltage regulated:	yes
Power consumption:	243.6 VA
Power output:	120 W
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	35 mm
Height:	130 mm
Depth:	115 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	5 A
SIL according to IEC 61508:	without
