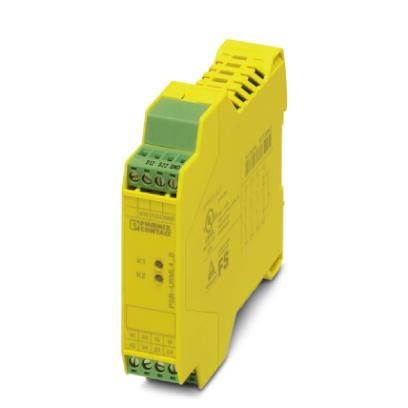

Phoenix Contact 2903583 PSR-SCP-24DC/URML4/3X1/1X2/B extension module

In stock

SKU: 567650

Price on request

€123.69

€0

Overview

One- or two-channel contact extension for OSSD signals (e.g. light grid), 3 normally open contacts, 1 normally closed contact, up to Cat. 4 PL e according to EN ISO 13849, SIL 3 according to EN 62061, plug-in screw terminals, width 22.5 mm

Property	Value
Suitable for monitoring proximity switches:	no
Evaluation of inputs:	other
Suitable for monitoring magnetic switches:	no
With UL approval:	yes
With muting function:	no
Mounting rail mounting possible:	yes
Design:	Extension device
Design of the electrical connection:	Screw connection
Suitable for monitoring optoelectronic protective devices:	no
Stop category according to IEC 60204:	other
Suitable for monitoring EMERGENCY STOP circuits:	no
Suitable for monitoring valves:	no
Suitable for monitoring tactile sensors:	no
With approval for BG BIA:	no
Width:	22.5 mm
Height:	99 mm
Depth:	114.5 mm
With removable terminals:	yes
With start input:	no
With feedback loop:	no
Release delay:	0.025 to 0.1 s
