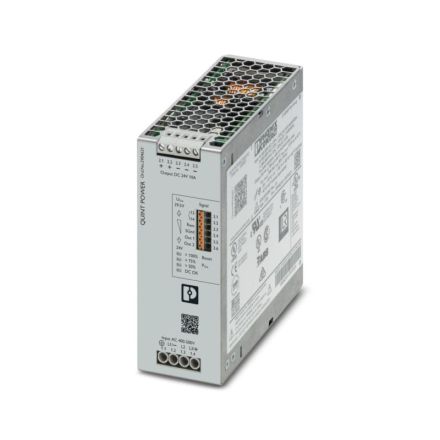

Phoenix Contact 2904621 QUINT4-PS/3AC/24DC/10 Power supply

In stock
SKU: 602142
€204.17
Into a basketIn the basketGo

Overview

SFB Technology selectively trips standard circuit breakers, while consumers connected in parallel continue to operate. Preventive function monitoring reports critical operating states before errors occur. Reporting thresholds and characteristics that can be set via NFC maximize system availability. Simple system expansion using static boost, starting of difficult loads using dynamic boost. High interference immunity thanks to integrated gas discharge tube and more than 20 milliseconds power failure bridging time. Robust design thanks to metal housing and wide temperature range from - 40 °C to + 70 °C. Can be used worldwide thanks to wide-range input and international approval package.

Feature Value
Installation height: 130 mm
1. Output voltage: 24 to 29.5 V
Type of supply voltage: AC
Max. Output current 1: 20 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 400 to 500 V
Rated supply voltage at DC: 260 to 300 V
Rated supply voltage at AC 60 Hz: 400 to 500 V
Short-circuit proof: yes
Stabilized: yes
Suitable for safety functions: yes
Direct mounting possible: no
Design of the electrical connection: screw connection
Output voltage regulated: yes
Power consumption: 274 VA
Power output: 240 W
Suitable for series installation: no
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 50 mm
Height: 130 mm
Depth: 125 mm
Nominal value of output voltage 1: 24 V
Nominal value of output current 1: 10 A
SIL according to IEC 61508: without

Characteristics

Type of voltage of the supply voltageAC
Rated supply voltage for DC260 to 300 V
Short circuit proofYes
Power consumption274 VA
HABQUINT4-PS/3AC/24DC/10
ManufacturerPhoenix Contact
HAN2904621
GTIN4046356986878
Design of the electrical connectionScrew connection
Width50 mm
Installation height130 mm
Suitable for series installationNo
Suitable for security functionsYes
Height130 mm
SIL according to IEC 61508Without
IP protection)IP20
Depth125 mm
Mounting rail possibleYes
Phoenix Contact 2904621 QUINT4-PS/3AC/24DC/10 Power supply
Phoenix Contact 2904621 QUINT4-PS/3AC/24DC/10 Power supply
€204.17
