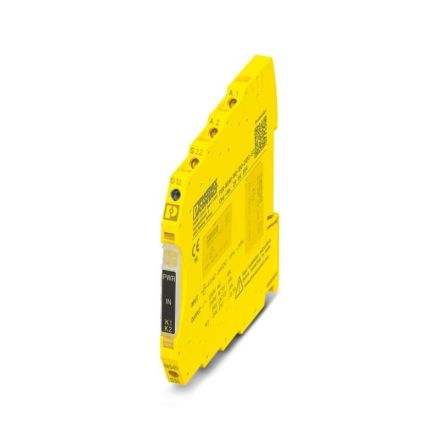

Phoenix Contact 2904954 PSR-MS40-1NO-1DO-24DC-SC safety relay

In stock

SKU: 579480

Price on request

€125.37

€0

Overview

Safety relays for emergency stops and protective doors up to SIL 3, Cat. 4, PL e, 1 or 2-channel operation, automatic start, 1 enable current path, US = 24 V DC, fixed screw terminal

Property	Value
Number of outputs, safety-related, undelayed, contact-based:	1
Suitable for monitoring position switches:	yes
Suitable for monitoring proximity switches:	no
Evaluation of the inputs:	other
Suitable for monitoring magnetic switches:	yes
With UL approval:	no
With muting function:	no
Mounting rail mounting possible:	yes
Design:	Basic device
Design of the electrical connection:	Screw connection
Suitable for monitoring optoelectronic protective devices:	no
Stop category according to IEC 60204:	other
Suitable for monitoring EMERGENCY STOP circuits:	yes
Rated control supply voltage Us at DC:	24 V
Suitable for monitoring valves:	no
Suitable for monitoring tactile sensors:	no
With approval for BG BIA:	no
Width:	6.8 mm
Height:	93.1 mm
Depth:	102.5 mm
With removable terminals:	no
With start input:	no
With feedback loop:	yes
Release delay:	0.175 to 0.25 s
