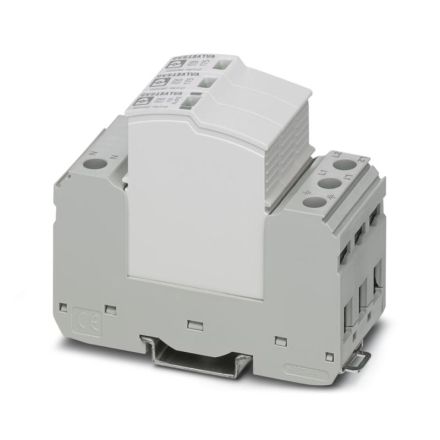

Phoenix Contact 2905351 VAL-SEC-T2-2S-175-FM Type 2 surge arrester

In stock
SKU: 572481
€192.40
Into a basketIn the basketGo

Overview

Low leakage current varistor arrester. High performance gas arrester for N/PE protection. Pluggable. Low protection level of 0.85 kV. Optical, mechanical status indicator. With potential-free remote signaling contact.

Property Value
Protection level: 0.95 kV
Nominal discharge current (8/20): 20 kA
Maximum continuous voltage AC: 175 V
Protection level LN: 0.85 kV
Mounting type: other
Size: 2 TE
Signaling on Device: optical
With remote signaling contact: yes
Test class type 2: yes
Max. conductor cross-section rigid (single/multi-wire): 25 mm²
Protection level N-PE: 1.3 kV
Protection class (IP): other

Characteristics

Max. conductor cross-section rigid (single/multi-wire)25 mm²
Protection level0.95 kV
With remote signaling contactYes
Test class type 2Yes
Protection level L-N0.85 kV
Protection level N-PE1.3 kV
HABVAL-SEC-T2-2S-175-FM Type2
ManufacturerPhoenix Contact
HAN2905351
GTIN4046356948241
Size2 HP
Highest continuous voltage AC175V
Mounting typeOther
Nominal discharge current (8/20)20kA
IP protection)Other
Signaling on the deviceOptical
