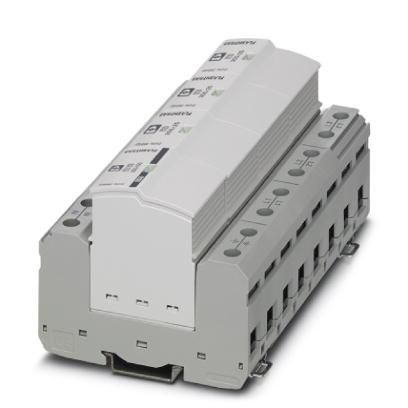

Phoenix Contact 2905421 FLT-SEC-P-T1-3S-350/25-FM Type 1 surge arrester

In stock

SKU: 562179

Price on request

€643

€0

Overview

Spark gap free of mains follow current. Leakage current free, suitable for use in the pre-meter area. Pluggable. Low protection level of 1.5 kV. Optical, mechanical status display. With potential-free remote signaling contact.

Property	Value
Protection level LN:	1.5 kV
Lightning impulse current (10/350 µs):	25 kA
Nominal discharge current (8/20):	25 kA
Highest continuous voltage AC:	350 V
Protection level:	1.5 kV
Follow current extinguishing capacity:	50 kA
Mounting type:	other
Size:	other
With remote signaling contact:	yes
Blowing out:	no
Signaling on the device:	optical
Test class type 1:	yes
Max. conductor cross-section, rigid (single/multi-wire):	35 mm²
Max. Conductor cross-section flexible (fine-stranded):	35 mm²
