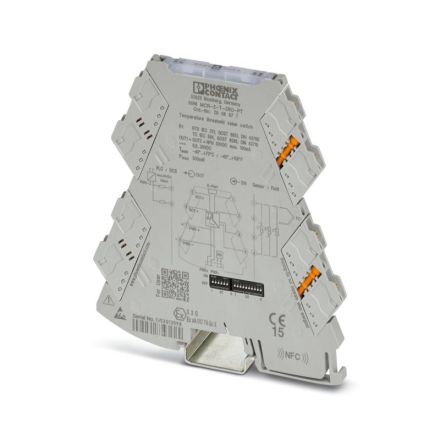

Phoenix Contact 2906877 MINI MCR-2-T-2RO-PT limit switch

In stock

SKU: 596636

Price on request

€204.03

€0

Overview

Universally configurable temperature limit switch with two transistor outputs for the connection of 2-, 3-, 4-wire resistance thermometers and thermocouples. Configurable via DIP switch or software, push-in connection technology

Property	Value
Height:	109.81 mm
Depth:	119.2 mm
Width:	6.2 mm
Device design:	Built-in device
Mounting type:	Snap-on mounting rail
Number of channels:	1
Protection class (IP):	IP20
Power consumption:	0.35 W
Rated supply voltage for DC:	9.6 to 30 V
Intrinsically safe according to EN 60947-5-6 NAMUR:	no
Operating temperature:	-40 to 70 °C
Design of the electrical connection:	other
Temperature drift:	0.01 %/K
Fault signal output:	no
