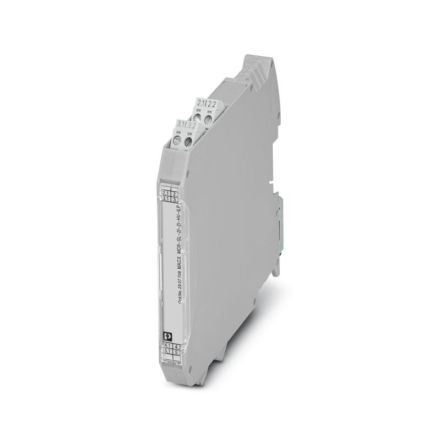

Phoenix Contact 2907706 MACX MCR-SL-2I-2I-HV-ILP passive isolator

In stock

SKU: 596518

Price on request

€425.59

€0

Overview

Two-channel input loop-powered 2-way isolator with increased isolation voltage and plug-in connection technology for galvanic isolation of analog signals. Input signal = output signal: 0 (4) mA ... 20 mA. Screw connection technology

Property	Value
Height:	112.5 mm
Depth:	114.5 mm
Width:	12.5 mm
Device design:	Built-in device
Load:	1375 Ohm
Mounting type:	Snap-on mounting rail
Number of channels:	2
Protection class (IP):	IP20
Number of input ranges 0 mA ... 20 mA:	1
Number of output ranges 0 mA ... 20 mA:	1
Number of input ranges 4 mA ... 20 mA:	1
Intrinsically safe according to EN 60947-5-6 NAMUR:	no
Operating temperature:	-40 to 85 °C
Galvanic isolation between the inputs:	yes
Design of the electrical connection:	screw connection
Number of output ranges 4 mA ... 20 mA:	1
Temperature drift:	0.002 %/K
Fault alarm output:	no
