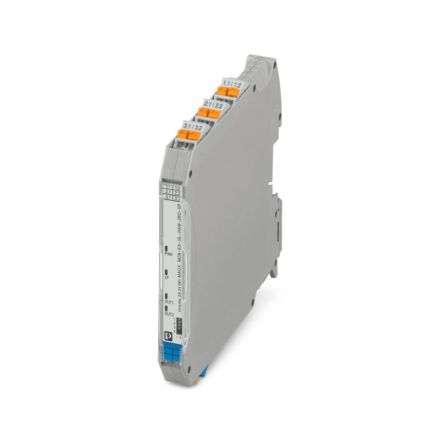

Phoenix Contact 2924061 MACX MCR-EX-SL-NAM-2RO-SP Ex-i NAMUR isolating amplifier

In stock

SKU: 567778

Price on request

€123.02

€0

Overview

Ex i NAMUR isolating switching amplifier. For operating proximity switches and switches in the Ex area. The signals are transmitted to the safe area via 2 relay outputs (normally open). Line fault detection (LFD), 3-way isolation, SIL 2.

Property	Value
Number of inputs according to NAMUR:	1
Number of inputs, potential-free:	1
Type of power supply:	other
Number of output circuits relay normally open:	2
Rated supply voltage for DC:	19.2 to 30 V
Width:	12.5 mm
Intrinsically safe according to EN 60947-5-6 NAMUR:	yes
Galvanic isolation between output to output:	yes
Galvanic isolation between the inputs:	no
Galvanic isolation between input and output:	yes
Galvanic isolation between supply voltage and all other circuits:	yes
Suitable for safety functions:	yes
Device design:	Built-in device
Height:	116 mm
Power consumption:	0.95 W
Mounting type:	other
Protection class (IP):	IP20
Depth:	113.7 mm
Switching capacity:	500 VA
Number of channels:	1
