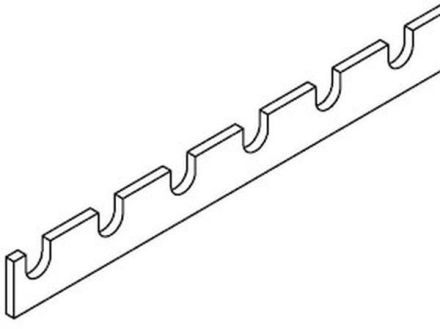

Pollmann 1210104 G-1L-210/12g fork phase rail

In stock
SKU: 551249
€1.04
Into a basketIn the basketGo

Overview

Phase rails, 1-phase, for LS without side wall

Property Value
Number of phases: 1
Length: 210 mm
Cross-section: 12 mm²
Rated continuous current Iu: 110 A
Max. Rated operating voltage Ue: 500 V
Insulated: no
Suitable for number of devices: 12
Suitable for devices with N-conductor: no
Pitch: 17.8 mm
Suitable for devices with auxiliary switch: no
Conditional rated short-circuit current Iq: 50 kA
Design of the electrical Connection: Fork
Rated impulse voltage: 4 kV

Characteristics

Suitable for devices with auxiliary switchNo
Suitable for devices with N conductorNo
Suitable for number of devices12
Pitch dimension17.8 mm
Rated surge voltage4 kV
HAB1210104 G-1L-210/12g
ManufacturerPollmann
HAN1210104
GTIN4025221002011
Number of phases1
Design of the electrical connectionFork
Conditional rated short-circuit current Iq50kA
Rated continuous current Iu110A
IsolatedNo
Length210 mm
Max. rated operating voltage Ue500V
Cross-section12 mm²
