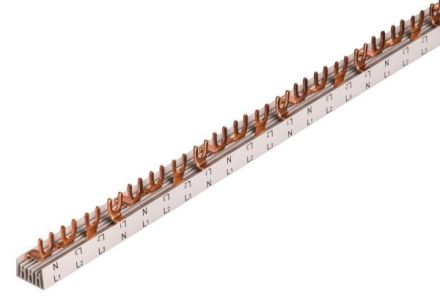

Pollmann 2213472 G-4L-1000/10 PP (printed) fork phase rail

In stock

SKU: 551363

Price on request

€55.20

€0

Overview

Phase rails, 4-phase, busbar exit in the middle for LS or 4-pole FI according to VBG 4 Printed with double phase marking

Property	Value
Number of phases:	4
Length:	1000 mm
Cross-section:	10 mm²
Rated continuous current Iu:	100 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	56
Suitable for devices with N-conductor:	yes
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	50 kA
Design of the electrical Connection:	Fork
Rated impulse voltage:	4 kV

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices56

Pitch dimension17.8 mm

Rated surge voltage4 kV

HABG-4L-1000/10 PP (printed)

Manufacturer

HAN2213472

GTIN4025221014236

Number of phases4

Design of the electrical connectionFork

Conditional rated short-circuit current Iq50kA

Rated continuous current Iu100A

IsolatedYes

Length1000 mm

Max. rated operating voltage Ue500V

Cross-section10 mm²
