Pollmann 2219308 G-3L-27/8-210/16MFC fork phase rail

Pollmann 2219308 G-3L-27/8-210/16MFC fork phase rail

In stock

SKU: 551107

Price on request

€6.16

€0

Into a basketIn the basketGo

Overview

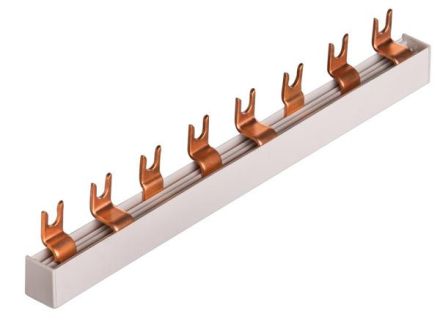

Phase rails, - three-pole, - universal for LS with auxiliary contact or for D0 elements

Property	Value
Number of phases:	3
Length:	210 mm
Cross-section:	16 mm²
Rated continuous current Iu:	130 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	8
Suitable for devices with N conductor:	no
Pitch:	27 mm
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	50 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorNo

Suitable for number of devices8

Pitch dimension27 mm

Rated surge voltage4 kV

HAB2219308 G-3L-27/8-210/16MFC

Manufacturer

HAN2219308

GTIN4025221037303

Number of phases3

Design of the electrical connectionFork

Conditional rated short-circuit current Iq50kA

Rated continuous current Iu130A

IsolatedYes

Length210 mm

Max. rated operating voltage Ue500V

Cross-section16 mm²

Pollmann 2219308 G-3L-27/8-210/16MFC fork phase rail

Pollmann 2219308 G-3L-27/8-210/16MFC fork phase rail

Price on request

€6.16

€0

Into a basketIn the basketGo
