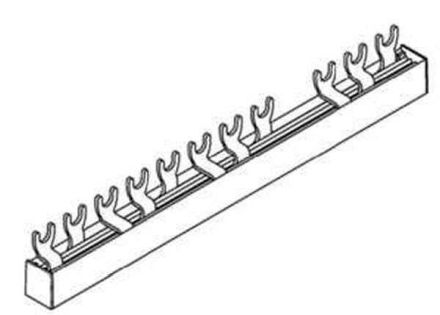

Pollmann 2219311 G-3L-FI4/6-180/16MFC FI 4-pin+6TE (10TE) fork phase busbar

Pollmann 2219311 G-3L-FI4/6-180/16MFC FI 4-pin+6TE (10TE) fork phase busbar

In stock

SKU: 551252

Price on request

€13.97

€0

Into a basketIn the basketGo

Overview

Multi-Flexible-Connect 3-phase for 4-pole FI + 6 LS Can be sawed! Connection screw: M 6 Insulation material: PC/ABS blend

Property	Value
Number of phases:	3.00
Length:	180.00 mm
Cross-section:	16.00 mm²
Rated continuous current Iu:	130.00 A
Max. Rated operating voltage Ue:	500.00 V
Insulated:	yes
Suitable for number of devices:	7.00
Suitable for devices with N conductor:	no
Pitch:	17.80 mm
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	50.00 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4.00 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices7.00

Pitch dimension17.80 mm

Rated surge voltage4.00 kV

HABG-3L-FI4/6-180/16MFC FI 4-pin+6HP (10HP)

Manufacturer

HAN2219311

GTIN4025221037334

Number of phases3.00

Design of the electrical connectionFork

Conditional rated short-circuit current Iq50.00 kA

Rated continuous current Iu130.00 A

IsolatedYes

Length180.00 mm

Max. rated operating voltage Ue500.00V

Cross-section16.00 mm²

Pollmann 2219311 G-3L-FI4/6-180/16MFC FI 4-pin+6TE (10TE) fork phase busbar

Pollmann 2219311 G-3L-FI4/6-180/16MFC FI 4-pin+6TE (10TE) fork phase busbar

Price on request

€13.97

€0

Into a basketIn the basketGo
