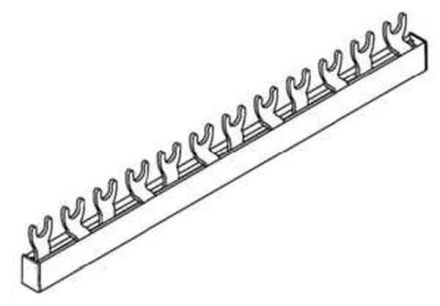

Pollmann 2219603 G-2L-210/10MFC12TE fork phase rail

Pollmann 2219603 G-2L-210/10MFC12TE fork phase rail

In stock

SKU: 551251

Price on request

€6.70

€0

Into a basketIn the basketGo

Overview

Multi-Flexible-Connect 2-phase for LS or 2-pole FI Can be sawed! Connection screw: M 6 Insulation material: PC/ABS blend

Property	Value
Number of phases:	2.00
Length:	210.00 mm
Cross-section:	10.00 mm²
Rated continuous current Iu:	100.00 A
Max. Rated operating voltage Ue:	50.00 V
Insulated:	yes
Suitable for number of devices:	12.00
Suitable for devices with N conductor:	no
Pitch:	17.80 mm
Rated short-time withstand current Icw:	500.00 kA
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	Fork
Rated impulse voltage:	4.00 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices12.00

Pitch dimension17.80 mm

Rated surge voltage4.00 kV

HAB2219603 G-2L-210/10MFC12TE

Manufacturer

HAN2219603

GTIN4025221037563

Number of phases2.00

Design of the electrical connectionFork

Rated continuous current Iu100.00 A

Rated short-time withstand current Icw500.00 kA

IsolatedYes

Length210.00 mm

Max. rated operating voltage Ue50.00V

Cross-section10.00 mm²
