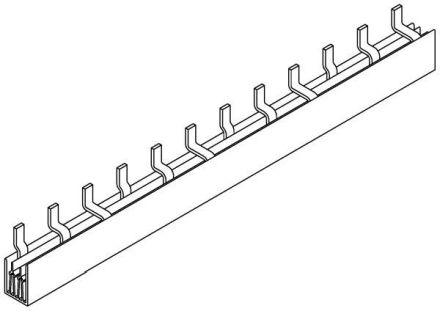

Pollmann 2225359 S-3L-27-1000/25 3-pole 25qmm phase busbar pin

In stock

SKU: 551118

Price on request

€64.75

€0

Overview

Phase rails, 3-phase, busbar exit at the top, for D0 elements, * air and creepage distances according to UL 600 V

Property	Value
Number of phases:	3
Length:	1000 mm
Cross-section:	25 mm²
Rated continuous current Iu:	180 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	36
Suitable for devices with N conductor:	no
Pitch:	27 mm
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	50 kA
Design of the electrical connection:	Pin
Rated impulse voltage:	4 kV

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorNo

Suitable for number of devices36

Pitch dimension27 mm

Rated surge voltage4 kV

HABS-3L-27-1000/25 3-pin 25qmm

Manufacturer

HAN2225359

GTIN4025221013246

Number of phases3

Design of the electrical connectionPen

Conditional rated short-circuit current Iq50kA

Rated continuous current Iu180A

IsolatedYes

Length1000 mm

Max. rated operating voltage Ue500V

Cross-section25 mm²

Pollmann 2225359 S-3L-27-1000/25 3-pole 25qmm phase busbar pin

Price on request

€64.75

€0
