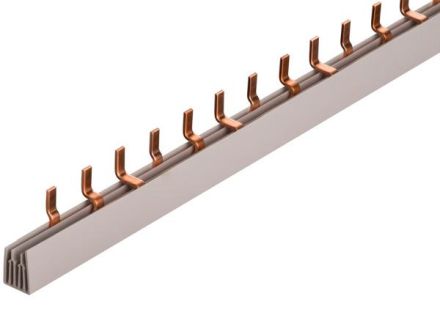

Pollmann 2226301 S-3L-27-1000/36 phase rail

In stock

SKU: 551101

Price on request

€95.08

€0

Overview

Phase rails - three-pole - universal for LS with auxiliary contact or for D0 elements

Property	Value
Number of phases:	3
Length:	1000 mm
Cross-section:	36 mm²
Rated continuous current Iu:	220 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	36
Suitable for devices with N conductor:	no
Pitch:	27 mm
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	50 kA
Design of the electrical connection:	Pin
Rated impulse voltage:	4 kV

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorNo

Suitable for number of devices36

Pitch dimension27 mm

Rated surge voltage4 kV

HAB2226301 S-3L-27-1000/36

Manufacturer

HAN2226301

GTIN4025221013147

Number of phases3

Design of the electrical connectionPen

Conditional rated short-circuit current Iq50kA

Rated continuous current Iu220A

IsolatedYes

Length1000 mm

Max. rated operating voltage Ue500V

Cross-section36 mm²
