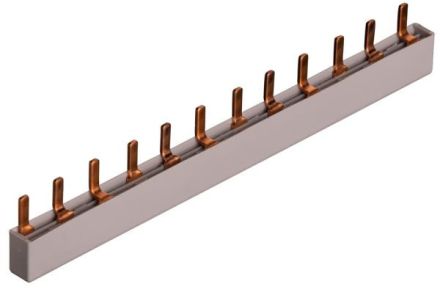

Pollmann 2227325 S-3L-210 ML 12TE 3-pole 16qmm phase busbar pin

Pollmann 2227325 S-3L-210 ML 12TE 3-pole 16qmm phase busbar pin

In stock

SKU: 551116

Price on request

€5.89

€0

Into a basketIn the basketGo

Overview

Mini-Line system, 16 mm2, Must not be sawn!, Insulation material: PA 6.6 GV 25, 3-phase for LS

Property	Value
Number of phases:	3
Length:	210 mm
Cross-section:	16 mm²
Rated continuous current Iu:	130 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	12
Suitable for devices with N-conductor:	no
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	50 kA
Design of the electrical Connection:	Pin
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices12

Pitch dimension17.8 mm

Rated surge voltage4 kV

HABS-3L-210 ML 12TE 3-pin 16qmm

Manufacturer

HAN2227325

GTIN4025221022026

Number of phases3

Design of the electrical connectionPen

Conditional rated short-circuit current Iq50kA

Rated continuous current Iu130A

IsolatedYes

Length210 mm

Max. rated operating voltage Ue500V

Cross-section16 mm²
