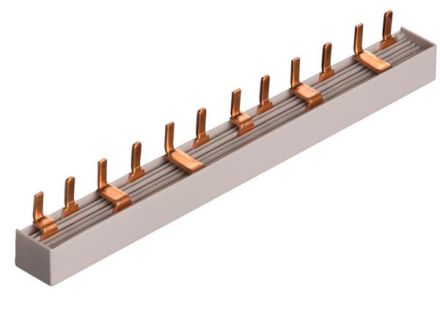

Pollmann 2229403 S-L1+N-L2+N-L3+N-210/16MFC phase rail

Pollmann 2229403 S-L1+N-L2+N-L3+N-210/16MFC phase rail

In stock

SKU: 551099

Price on request

€23.44

€0

Into a basketIn the basketGo

Overview

four-pole, universal for 2-pole LS+N

Property	Value
Number of phases:	4
Length:	210 mm
Cross-section:	16 mm²
Rated continuous current Iu:	130 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	6
Suitable for devices with N-conductor:	yes
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	50 kA
Design of the electrical Connection:	Pin
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices6

Pitch dimension17.8 mm

Rated surge voltage4 kV

HAB2229403 S-L1+N-L2+N-L3+N-210/16MFC

Manufacturer

HAN2229403

GTIN4025221036412

Number of phases4

Design of the electrical connectionPen

Conditional rated short-circuit current Iq50kA

Rated continuous current Iu130A

IsolatedYes

Length210 mm

Max. rated operating voltage Ue500V

Cross-section16 mm²

Pollmann 2229403 S-L1+N-L2+N-L3+N-210/16MFC phase rail

Pollmann 2229403 S-L1+N-L2+N-L3+N-210/16MFC phase rail

Price on request

€23.44

€0

Into a basketIn the basketGo
