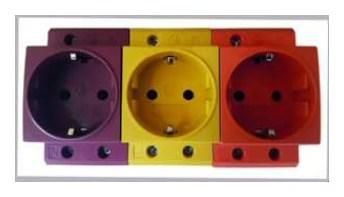

Safety socket for mounting on DIN rails, e.g. for small installation distributors and meter boxes in accordance with 0603. Socket for domestic use and similar purposes e.0620, part 1 / 2005-04. Number of terminal points: 1 each for L, N, PE. Nominal current: 16 A. Nominal voltage: 250 V. Terminal body: brass. Terminal screws: galvanized steel. Insulating housing: plastic, impact-resistant, flame-retardant. Cable connection: max. 10 mm² rigid/stranded, box terminal with integrated wire protection. Fastening: on DIN rail in accordance with EN 50022 / EN 60715. Ambient temperature: -20°C to +60°C. Dimensions: Envelope dimensions in accordance with DIN 43880 machine dimensions, cap dimension 45 mm, width 2.5 HP (
