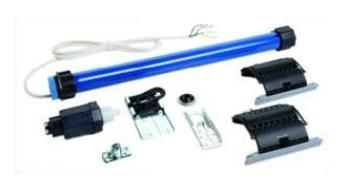

Electronic, intelligent compact drive, Plug and Play mode, i.e. fully automatic end position detection without setting cable, Set mode, i.e. manual end position setting, Regular end position correction with fixed shaft connectors and stoppers (every 60 cycles), Anti-freeze protection and obstacle detection, Whisper gear, Proven and maintenance-free technology, Including pre-assembled 60 mm octagonal adapter set, Parallel connection possible without isolating relay, Nominal voltage: 230 V / 50 Hz, IP 44, protection class I, Thermal switch duty cycle: 4 min., Supply line: 2.5 m, H05VV-F 4 x 0.75 mm², Capacity of the limit switches: 3 min., Operating temperature: - 20°C to + 80°C, Consisting of: Electric motor including assembled 60 mm adapter set, universal bearing, ball bearing, Ball bearing holder, roller capsule including adapter set, fixed shaft connector 2-part, PRLAE 1016:, pulling force roller shutter height 1.5 m / 2.5 m: 20 kg / 18 kg, area of application: plastic 4 sqm, aluminum 2.5 sqm, PRLAE 2016:, pulling force roller shutter height 1.5 m / 2.5 m: 41 kg / 37 kg, area of application: plastic 10 sqm, aluminum 7.5 sqm, PRLAE 3016:, pulling force roller shutter height 1.5 m / 2.5 m: 62 kg / 56 kg, area of application: plastic 13 sqm, aluminum 9 sqm
Property | Value |
Torque: | 10 Nm |
