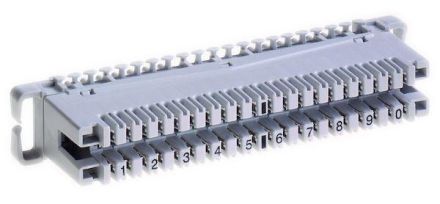

PROTEC.net 05105124 PAL2/10 LSA 2 terminal block

In stock

SKU: 537241

Price on request

€13.51

€0

Overview

LSA 2 terminal block With support contacts for connecting earth and special cables at each end of the module. The cables are installed using an LSA installation tool. Cable connection 0.4 - 0.8 mm. Number of poles: 20. Material: PBT with brass contacts. Insulation resistance: 5 GOhm. Dielectric strength: 2KV/50 Hz. Cable diameter in mm: 0.40 - 0.80. Outside diameter over insulation in mm: 0.70 - 1.5. Contact frequency <= 0.65. Conductor diameter: > 50 x. Contact frequency <= 0.8. Conductor diameter: <= 50 x. Contact material: special brass. Contact surface: silver. Flame retardant: UL 94 VO. Volume resistance: < 10 mOhm.

Property	Value
Color:	gray
Design:	Connection strip
With strip marking:	yes
Max. number of double wires (DA):	10
Length:	123 mm
Width:	32 mm
Height:	21 mm
Color-coded:	no

Characteristics

HABPAL2/10 LSA2

Manufacturer

HAN05105124

GTIN4016705151240

VersionTerminal block

Width32 mm

Color

Height21 mm

Length123 mm

PROTEC.net 05105124 PAL2/10 LSA 2 terminal block

Price on request

€13.51

€0
