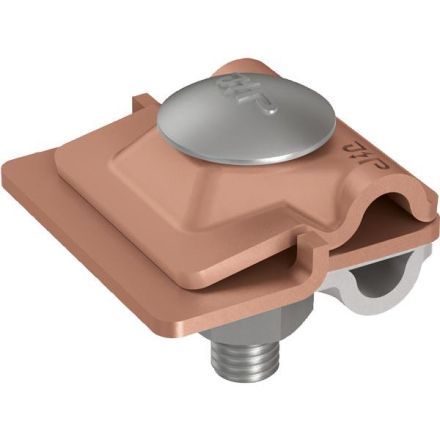

Pröpster 111 274 Bimetal Al/Cu D:8mm Multi-Plus clamp

In stock
SKU: 1056177
€10.06
Into a basketIn the basketGo

Overview

Two-metal Multi-Plus connection terminal, according to DIN EN 62561-1 with intermediate plate, for universal use as T, cross, parallel, butt and sheet metal connection terminal, material upper part: aluminum, material lower part: copper, material intermediate plate: bimetal, aluminum/copper, fit: Ø 8 mm, clamping range: up to 8 mm, contact area: at least 10 cm², screw: carriage bolt M10 with nut, stainless steel V2A, spring ring: stainless steel V2A,

Characteristics

HABBimetal Al/Cu D:8mm
ManufacturerPröpster
HAN111 274
GTIN4059273026572
Pröpster 111 274 Bimetal Al/Cu D:8mm Multi-Plus clamp
Pröpster 111 274 Bimetal Al/Cu D:8mm Multi-Plus clamp
€10.06
Into a basketIn the basketGo
