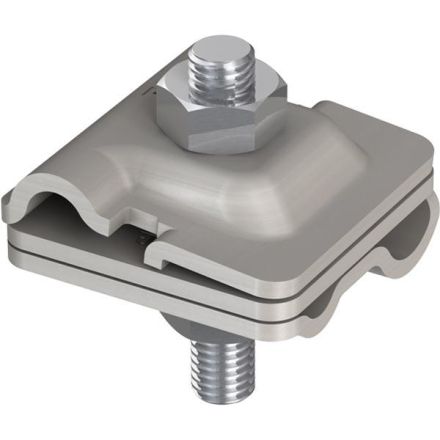

Connection terminal according to DIN EN 62561-1 for the connection of reinforcement and foundation earthing with the fixed earthing point. Assembly: Possible in two steps. Assembly step 1: Connection of the foundation earthing to the reinforcement. Assembly step 2: Connection and fixing of the fixed earthing point to the reinforcement. Clamp material: St/bare. Threaded bolt: M10x60, St/gal Zn with hexagon nuts M10, St/tZn. Clamp design: 3-part, round-flat/round. Fit: Ø 10 / fl, 30x3.5 mm / Ø 4-16 mm.
