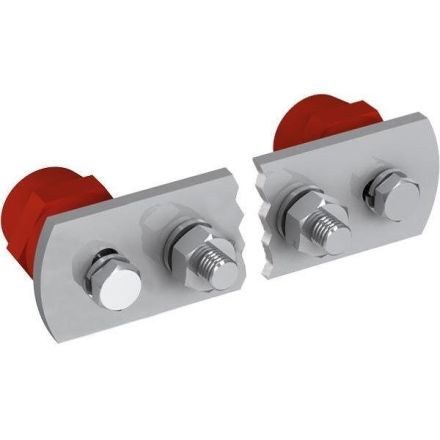

Equipotential bonding rail according to DIN EN 62561-1 with plastic insulators for protective and functional equipotential bonding according to DIN0100 Part 410/540 and lightning protection equipotential bonding according to DIN EN 62305-3. Material: V2A stainless steel. Dimensions (length x width x thickness): 370 x 40 x 5 mm. Number of connections: 10. Connection holes: 11 mm. Material of screws: V2A stainless steel. Design of connection screws: [10x] M10 carriage bolt with nut and spring washer. Rail fastening: [2x] M8 hexagon bolt with spring washer. Wall fastening: [2x] M8 St/gal Zn shoulder screw with plastic dowel 10x50. Insulators: [2x] M8 threaded connection, SW 32. Height 35 mm. Short-circuit current (50 Hz), 1 s, 300 °C:, 7.3 kA
