Rademacher 23602080 SLDM 20/16PZ-AS Comfort RolloTube automation set

In stock
SKU: 512676
€228.47
Into a basketIn the basketGo

Overview

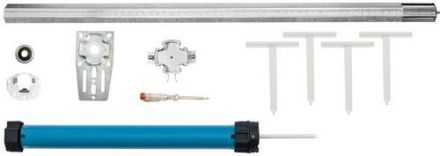

With the Comfort tubular motor automation set from RADEMACHER, roller shutters are easily motorized - installation material and instructions included. No annoying 'finding' of individual parts, no missing material on site, just complete! Buy, unpack, install - done. And that for the most common window widths up to 185 cm. The radio-controlled Comfort tubular motor automation set includes the S-line radio medium 20 Nm / 16 rpm (SLDM 20/16) tubular motor including the following accessories: adapter, driver, click drive bearing, aluminum construction bearing, octagonal steel shaft (60 mm x 0.6 m), telescopic extension including roller capsule, 4 fastening springs, counter bearing including ball bearing, installation material and installation instructions. The torque of the motor is 20 Nm and the speed is 16 rpm.

Property Value
Torque: 20 Nm
Outer diameter: 45 mm
Octagonal steel shaft SW 40: no
Octagonal steel shaft SW 50: yes
Octagonal steel shaft SW 60: yes
Octagonal steel shaft SW 70: yes
For roller shutters: yes
For awnings: yes
For grooved tube shaft: yes
Type of limit switch: electronic
Backjump: no
Electronic path monitoring: yes
Electronic obstacle detection: yes
With driver: yes
With adapter for shaft: yes
Length: 487 mm
Max. roller shutter weight: 76 kg

Characteristics

HABSLDM 20/16PZ-AS Comfort
ManufacturerRademacher
HAN23602080
GTIN4031909023568
Outer diameter45 mm
Length487 mm
