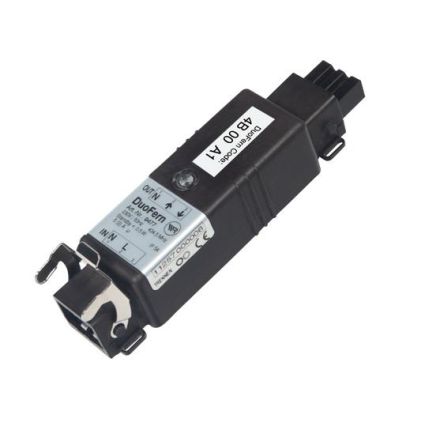

Radio-capable actuator for roller shutter, blind and awning motors With the DuoFern Connect actuator radio receiver, you can convert existing mechanical or electrical Venetian blinds, awnings or roller shutter motors to DuoFern radio without much effort. Once the radio receiver is plugged in, it can be conveniently controlled wirelessly. You simply operate the actuator using the DuoFern transmitters or control units. The tubular motor or Venetian blind mode is freely selectable and operation is carried out via the DuoFern transmitters or the HomePilot. The special highlight of the DuoFern Connect actuator is the Hirschmann STAS3/STAK3 plug system. Thanks to this standard plug connection, it can be quickly and easily connected to motors with the corresponding plug system. Technical data: Article number 3500 08 64 Type 9477 Supply voltage 230 V Protection class IP 54 Dimensions 123.5x 33.5x 26.5mm (LxWxH) Max. switching capacity 5A resistive load, 2A inductive load Stand-by consumption < 0.5 W Transmission frequency 434.5 MHz Transmission power max. 10 mW Range in open field approx. 100 m Range in buildings approx. 30 m (depending on the building structure) DuoFern transmitter max. 20
