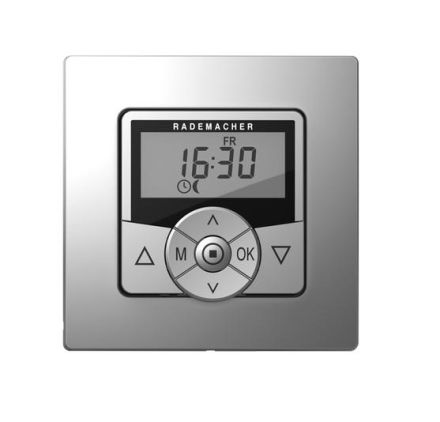

Standard - timer for controlling tubular motors The Troll Standard is a roller shutter timer in a modern design with many practical functions. Connected to a tubular motor, this control is ideal for automating your roller shutters. The connected roller shutters can still be operated easily at the touch of a button. In addition to the modern design with a large display in a piano lacquer look, the Troll Standard timer also impresses with many practical automatic functions. For example, with the individually adjustable daily and weekly program. This means you can easily adapt your roller shutter control to your preferences. The Troll Standard also has a random function for randomly delaying the set switching times when you are away. The adjustable key lock helps prevent the timer from being operated accidentally. The Troll Standard timer is supplied in ultra white and aluminum including a frame. It can also be easily integrated into all common switch ranges using an intermediate frame. Technical data: Article number 3650 03 22 (AL) Type 5620-AL Supply voltage 230 V, 50 Hz Protection class II Dimensions 50x50x12 mm (LxWxH) Installation depth 32 mm Switching capacity 8 A resistive load, 4 A inductive load Stand-by consumption approx. 0.6 W Power reserve in the event of a power failure approx. 8h Operation at 0 to 40 °C External inputs 2
