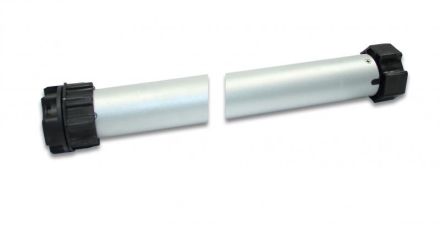

The tubular motor Basis Small RTBS 10/16Z is a mechanical tubular motor for roller shutters. With this tubular motor, the end points are set mechanically with an adjustment tool (included) using the adjustment screws on the motor head. The motor is 472 mm long in total and the motor tube has a diameter of 35 mm. It fits into any RADEMACHER Click drive bearing. The supply voltage is 230V (50Hz) and it has protection class IP 44. There is a 5-year guarantee on the RADEMACHER motor. The tubular motor Basis Small RTBS 10/16Z is equipped with a 2.5 m long connection cable, the RADEMACHER Click drive bearing adapter and the Click universal drive bearing for attachment to the masonry or in front-mounted/attachment elements. The motor is pre-adapted for an octagonal steel shaft with a wrench size of 40. With the available accessories, it can also be adapted for octagonal steel shafts with wrench widths of 50 and 60 mm and round shafts with a diameter of 40 and 50 mm. The torque is 10 Nm and the speed is 16 rpm.
