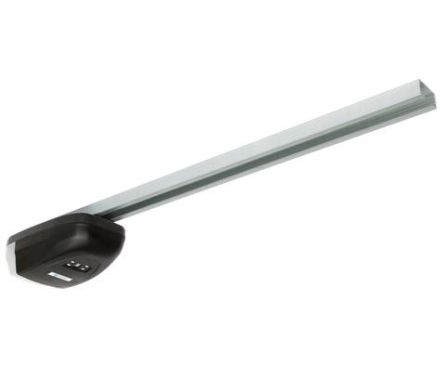

Garage door operator RP-S2-700N-7 RolloPort S2 long
Thanks to its 700 N pulling force, the electronic door operator is universally suitable for all common up-and-over and sectional doors. It offers extensive convenience functions, such as automatic door closing, soft start/soft stop or a power LED for interior lighting. The RolloPort S2 is equipped with obstacle detection with reversing function. It offers the option of connecting an external button. The power is transmitted via a rotating drive chain. It is supplied with two 2-channel micro hand-held transmitters and an external release. The supply voltage is 230V and it is assigned to protection class II. The motor of the RolloPort S2 works with 24V (DC) direct current. The door travel speed is 11 cm/s. The transmission frequency is 433 MHz (rolling code). It can be operated at -20 to +40°C. The RolloPort S2 (long) is delivered with a three-part guide rail, has a total length of 3740mm + a maximum lifting height. of 2850mm.
Technical data: Article number 4202 70 61 Type designation RP-S2-700N-7 Tensile force 700 N Total length 3740 mm Max. lifting height 2850 mm Max. gate size 10.5 m Min. headroom 6 cm Max. gate height 2725 mm Gate speed OPEN 11 cm/s Gate speed DOWN 11 cm/s Supply voltage 230V, 50 Hz Protection class II Operation at -20° C to +40° C
The RolloPort S2 is delivered with two 2-channel micro handheld transmitters and an external release.
