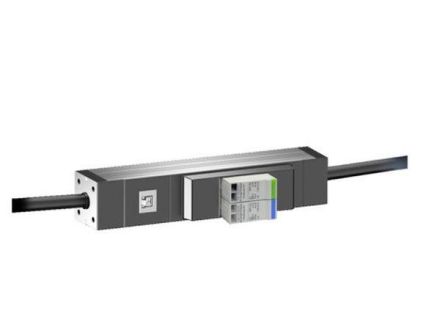

RITTAL 7979722 7.4 kW Rated current (max.): 32 A 1~ PDU Basic power distribution

In stock

SKU: 714403

Price on request

€183.39

€0

Overview

DK surge protection module, for terminal device protection (type 3) with signaling contact, for attachment to the cabinet frame, nominal power: 7.4 kW, nominal current: 32 A, 1~, connection type: CEE plug/coupling, connection cable/length: H05VV F3G4.0/1 m, extruded aluminum profile, anodized, RAL 9005, including fastening material, DK surge protection module

Property	Value
Nominal voltage AC:	250 V
Highest continuous voltage DC:	250 V
Highest continuous voltage AC:	250 V
Mounting type:	other
With remote signaling contact:	no
Total discharge current (8/20) (L+N-PE):	6.5 kA
Number of poles:	3
Signaling on the device:	optical
Test class type 3:	yes
With interference filter:	no
Protection class (IP):	IP20
