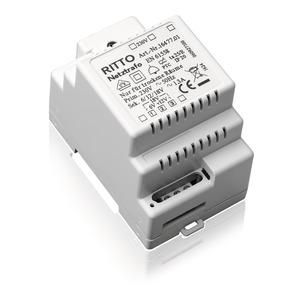

Ritto 1647701 mains transformer, REG

In stock

SKU: 188908

Price on request

€50.40

€0

Overview

For decentralized power supply of video house stations, cameras, floor distributors and connection adapters KOAX. Thermal fuse. For mounting on top hat rails in standard distributors according to DIN EN 43870. Dimensions: 54x90x60 mm (WxHxD). Vending machine positions: 3. Output voltage: AC 6 V 12 V 18 V / 1.3 A. Power supply: AC 230 V 50 Hz. : REG.

Property	Value
Installation technology:	system-independent
Application:	Outdoor station
Input voltage:	230 V
Output voltage:	18 V
Type of current:	AC
Mounting type:	DIN rail
Height:	90 mm
Width:	54 mm
Depth:	60 mm
Integrated door opener circuit:	no
Programming lock:	no
Control function:	yes
Service displays:	no
Evaluation function:	no
Frequency:	50 MHz
Protection class (IP):	IP20
Max. output current:	1300 mA
Short-circuit proof:	yes
Width in pitch units:	3
With contact:	no
